RC How To:

Add to RPM arms to a SC10 - Rear (2)

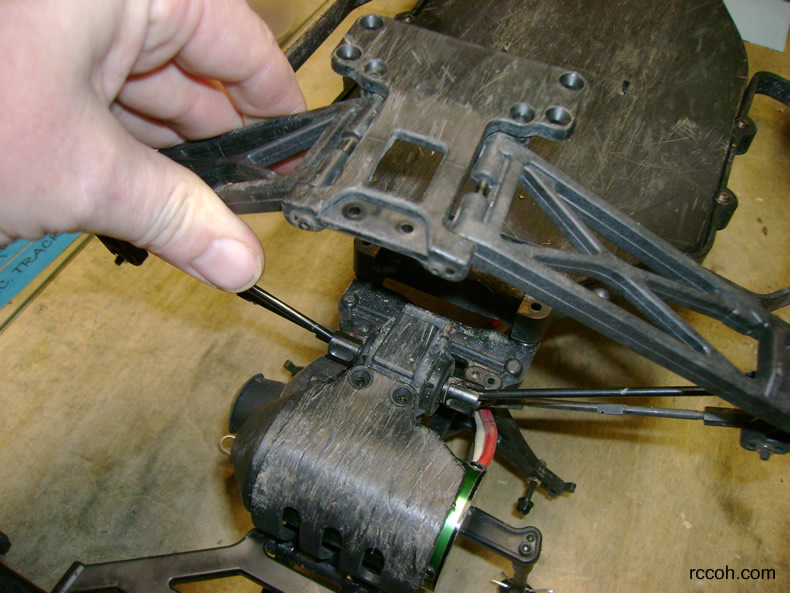

Next flip over the truck and there are 2 small screws and 6 larger screws. Remove all of them and you'll be able to lift the arms up away from the truck.


I disconnect the outer part of the arms first. Remove the tiny screw and push the pin out. Don't lose the spacers, they are re-used.


remove screws


Punch slide pins

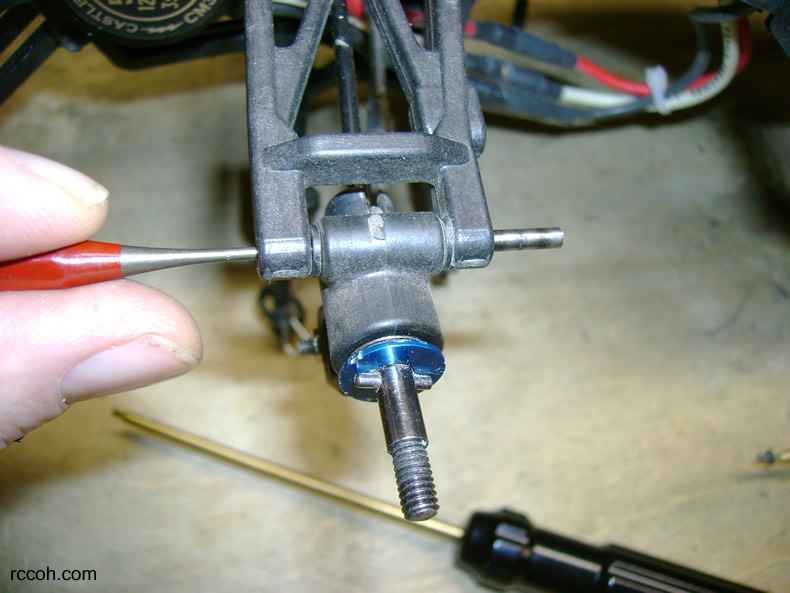

To remove the inner pins, pull the pieces apart a little and push the pins out.


Inner pin removal sc10

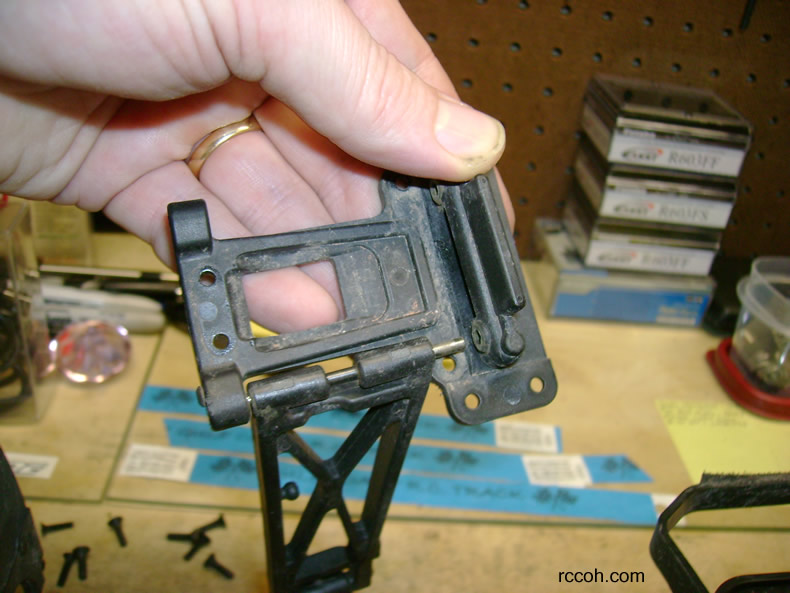

The RPM arms pop right on and you'll use the original small screws to capture the pins here.


RPM arms being installed




Page 1, 2, 3 |-->
